3A.           Making Calls on the UC+ Mobile App

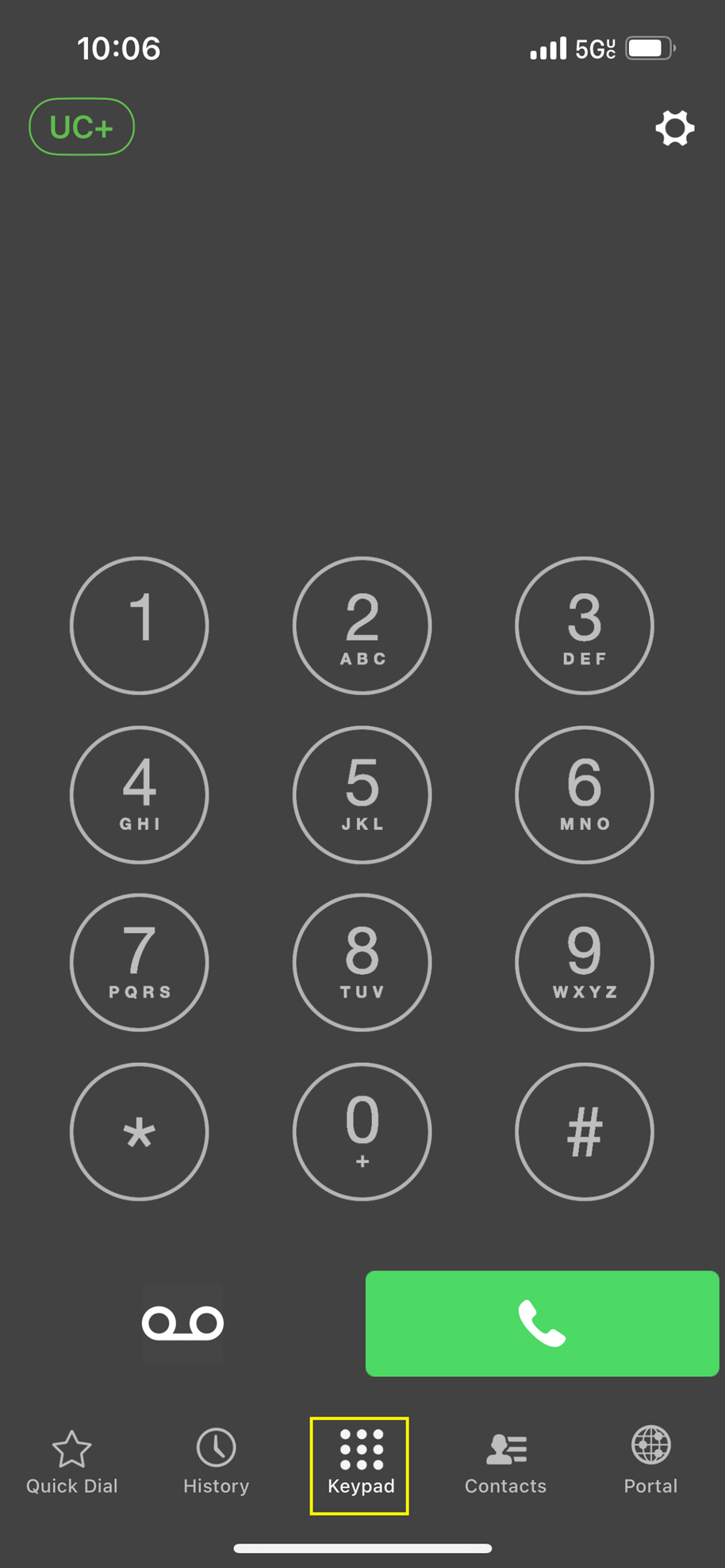

To make calls select the “Keypad” icon from the system menu, then enter the number you want to dial

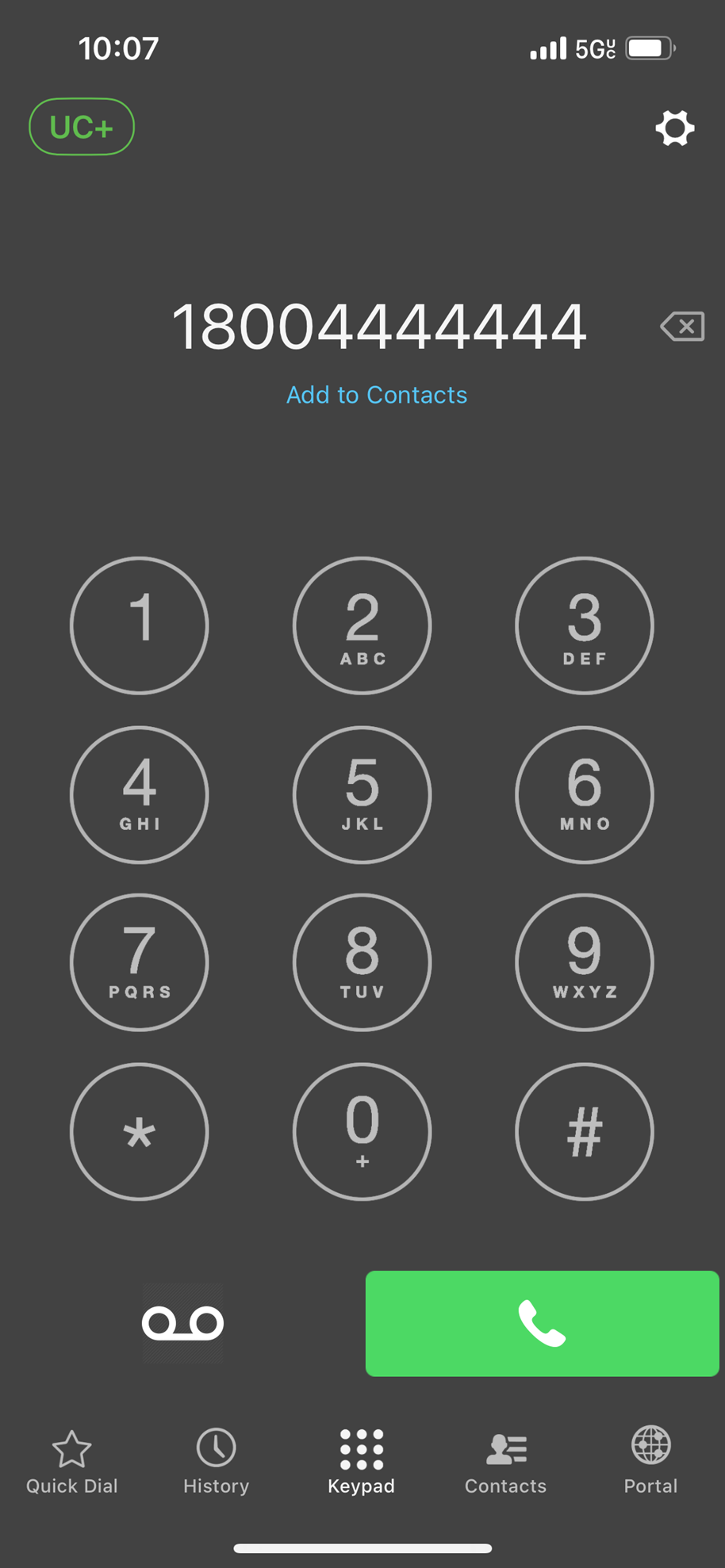

After entering the destination number tap the green handset icon to start the call.

Keep in mind if you have not entered any number and tap the handset icon the app will show the last dialed number (redial feature).











Optionally there is a dialing menu from where video calls can be made.

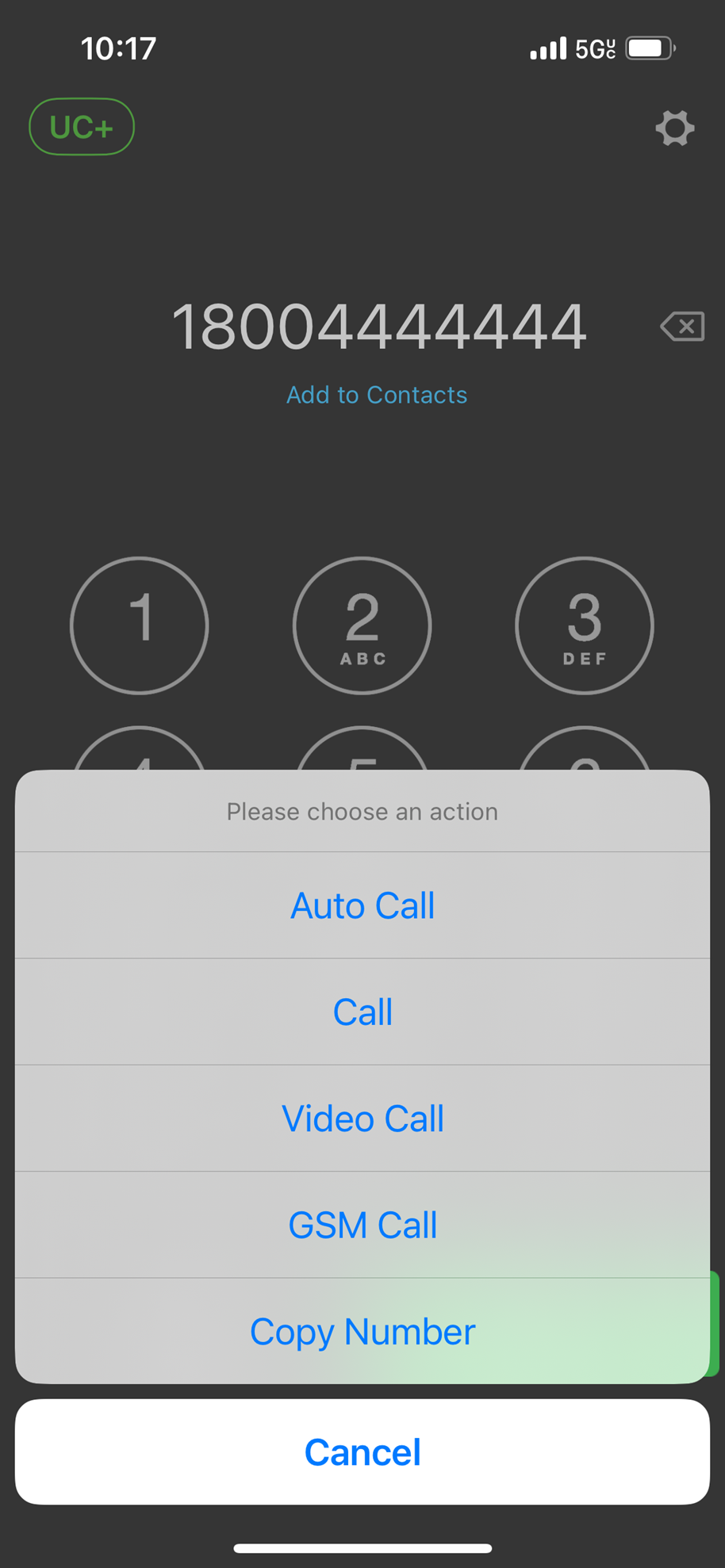

To open the extended dialing menu press and hold the dialing button for about 1 second, after that the following options will be shown






Auto Call / Call :  Places a regular voice call

Video Call :  start a video call, keep in mind that to have actual video the destination device must also support video calls

GSM Call: will dial the number using the phone’s carrier service

Copy Number: Copy the number into the clipboard

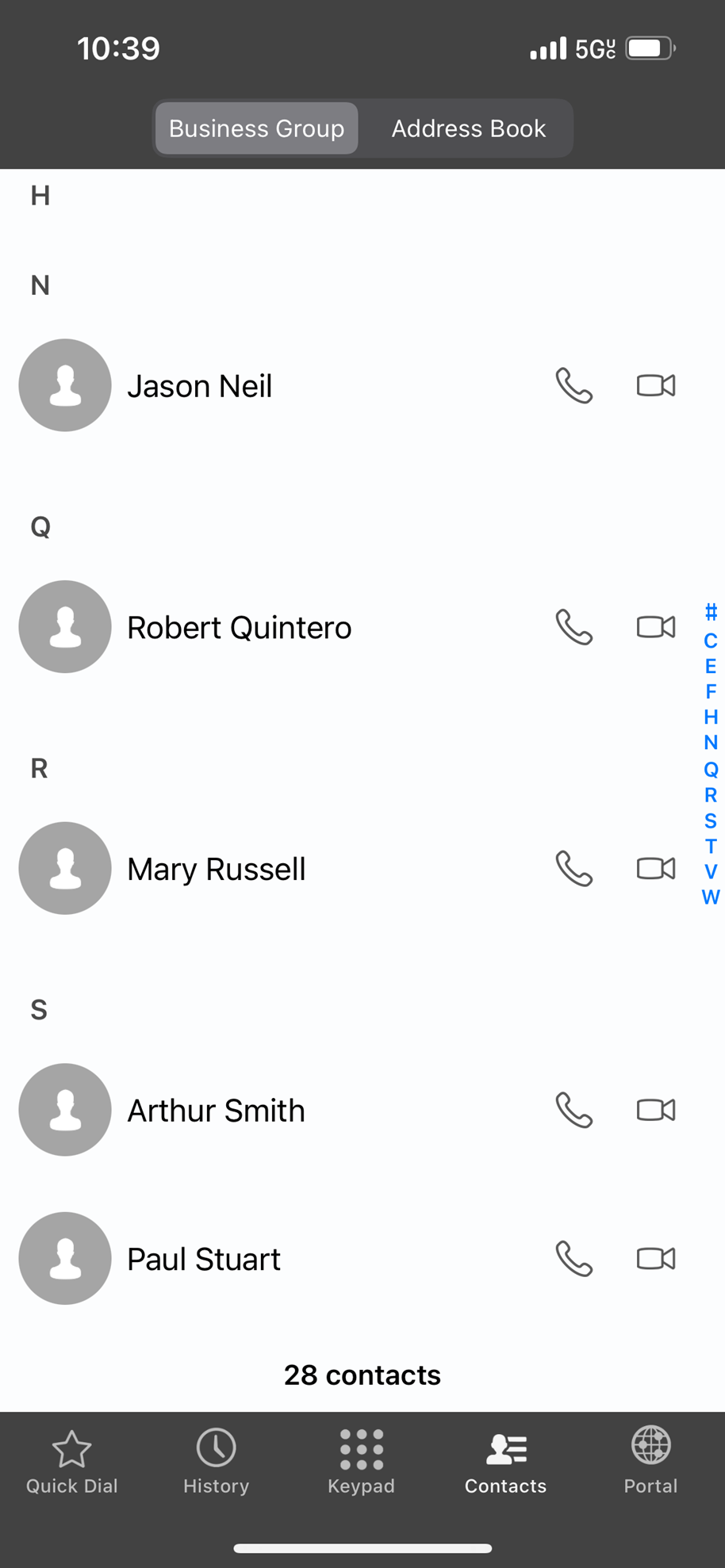

When making calls from the Contacts list, audio or video calls can be started directly using the handset and camera icons on the right on the contact name








In addition, you can also make audio and video calls from the Call History.

To make a regular audio call just tap the number you want to redial.

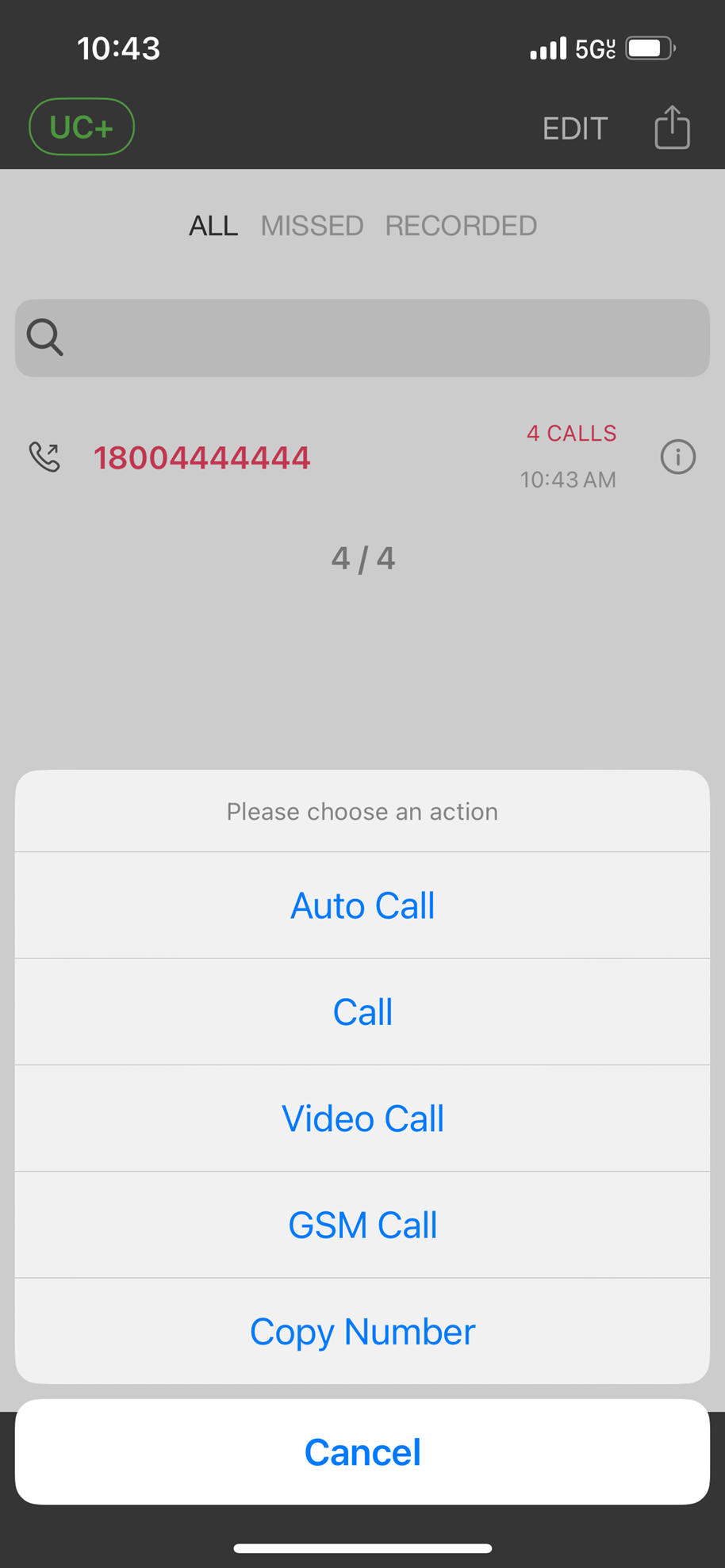

To make video calls press and hold the number in call history, after about a second the extended dialing menu previously described will be shown

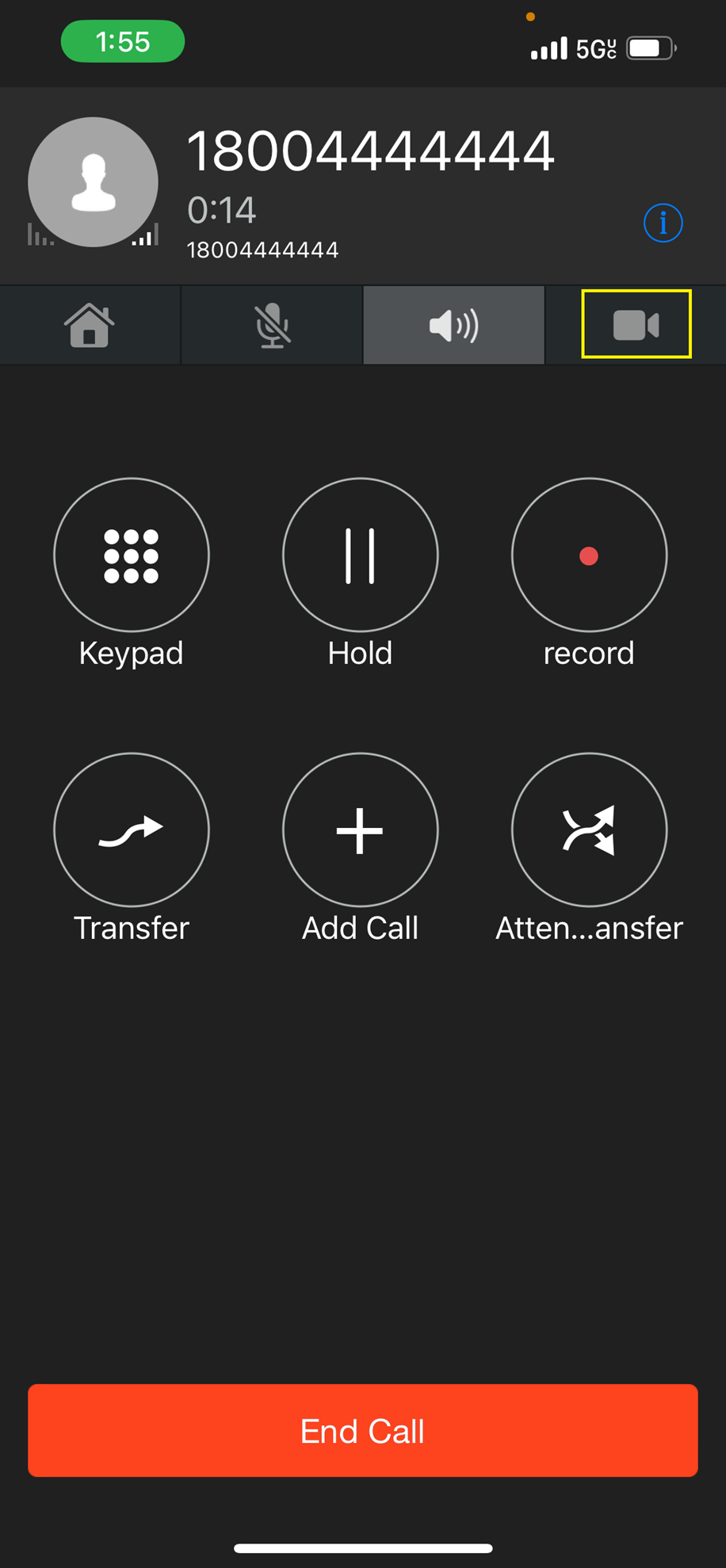

During an ongoing call video can be enabled or disabled by selecting the camera icon








In addition, during an ongoing call if you swipe the screen left the app reports the following:

- Packet loss percentage, it indicates the percentage of voice packets being dropped by the internet connection
   If the percentage is over 5% you will hear choppy audio
-  Jitter, it indicates the voice packets inter-arrival time (the time that takes for every voice packet to reach the softphone)
   If the value is too high you may hear choppy, distorted or delayed audio, it is mostly produced by the quality of the internet connection
   To have a good voice quality the jitter must be below 30ms
-   Volume Boost allows to increase the microphone and speaker gain
