Netgen HX40xE Fax ATA Configuration Guide

This article will show you how to configure the Netgen Fax ATA for use on the RingLogix T38 IP Fax platform.


Netgen HX40xE Configuration Guide

1. Power on the device and connect the PC port to your internet switch or router.

2. The device will automatically get an IP from your router via DHCP.

3. Find the devices IP address. You can connect a handset to the phone port and dial # # to have the device read it to you.

If DHCP is not available or the device is not obtaining an IP you can connect your computer to the WAN port and browse to its default IP of 192.168.2.218. Your computer must have an IP on the same subnet 192.168.2.XXX for it to connect.

4. Browse to the IP of the device and login as an Admin and use the default password, which is on the back of the device.

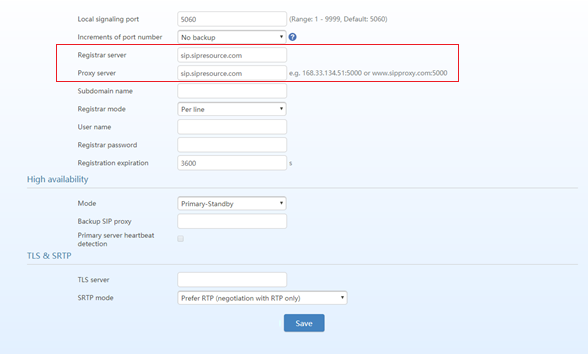

5. Click on the Basic menu option select SIP.

6. Complete these fields and click Save.

• Registrar Server: sbc.ringlogix.com

• Proxy Server: sbc.ringlogix.com

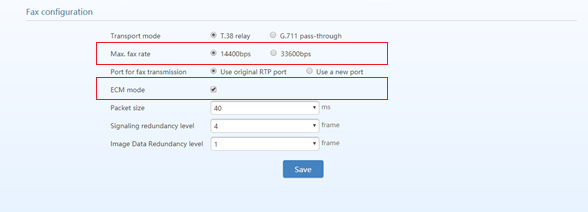

7 Next go to FoIP page, complete these fields and click Save.

• Max fax rate: select 14400bps

• ECM Mode: check the box

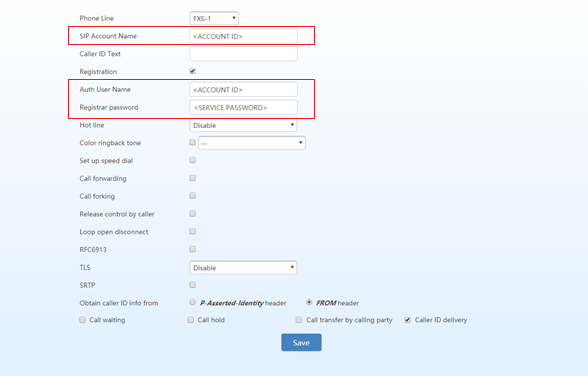

8. Click on the Line menu option and select Configuration.

9. Complete these fields and click Save

• SIP Account Name: SIP username

• Auth User Name: SIP username

• Registrar password: SIP password

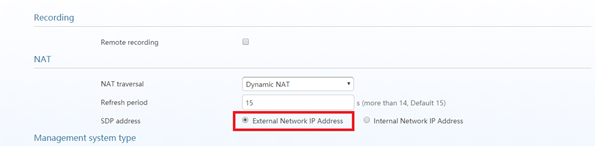

10. Click on Advanced tab and choose the System sub tab.

11. For NAT Traversal SDP Address set it to External Network IP Address.

12. Click Save.




For detailed instructions on the devices features please refer to the manufactures User Manual.
